The Boat - technical

Pete Vincent, from west Country Boat Repairs talks us through

Posted: 16/03/2009 11:04:54

Changing the Slot Gasket

For RS200 and RS400 owners one of the worst things that can happen is your slot gasket come off in the middle of a race and turn your boat into a plastic fountain. So regularly checking your slot gasket and changing it when it shows signs of age with small tears or staying open when the board is fully retracted will save a lot of grief.

Changing a slot gasket does involve a fair bit of time but could be made a lot easier by following some simple guidelines. First get the boat dry and get it into a position where it is going to remain dry. Allow yourself enough time to change the gasket before next sailing. It will probably take you about 90 minutes to remove old gasket and fit a new one. You should leave the new gasket to cure for 8-12 hours.

When the boats are built the slot gasket is put on using sikoflex.

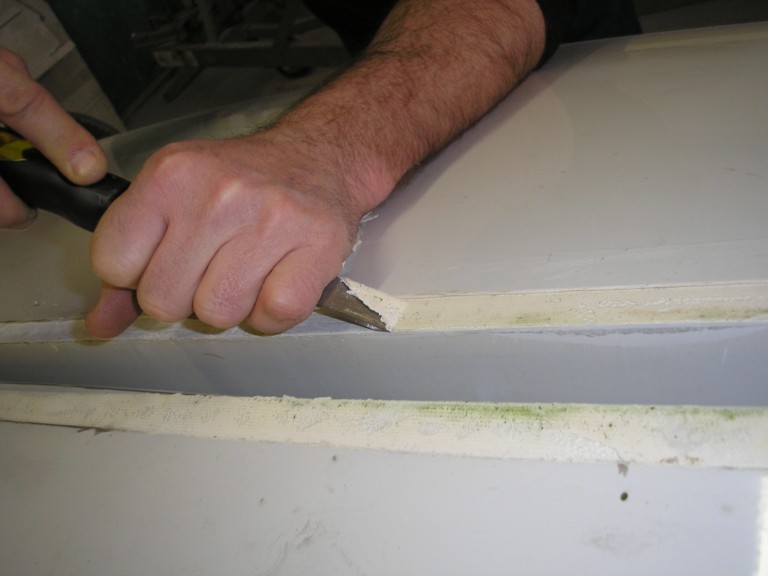

When you peel off the old gasket much of the sikoflex will be left behind attached to the hull. The real secret to successfully fitting a new gasket is completely removing all this old material. Do not attempt to stick a new gasket on top of this old sikoflex; it will not stay attached very long. Buy yourself a new sharp chisel, the £2 invested will save a huge amount of time, and use this to remove the sikoflex.

It is not important if you do make some small gouges in the recess in the hull for the gasket. Then wrap a piece of coarse sandpaper around a block and carefully rub down the recess to remove small flakes left.

Attach wide masking tape to the hull directly beside the edge of the recess; this will stop excess glue sticking to the hull and save a lot of cleaning time. Then brush down the recess and get rid of dust. The boat must be totally dry before trying to attach a new gasket.

Then prepare the new gasket. Put the length on the boat and trace the shape of the recess at the front, trim to right shape. Then cut gasket at rear so the gasket is flush against bailer housing. There is no need to try and fit the gasket under the bailer; this is virtually impossible to prise off without breaking the bailer.

Then lay the new gasket on a flat surface and carefully trace a centreline, this does not have go right to the front of the gasket. Use a sharp knife to cut the centreline using a straight edge as a guide. It is so much easier to pre cut the opening in this way than when the gasket is fitted to boat. We put masking tape on to close the new opening to make it easier to handle gasket when fixing the gasket to boat. Then rub down the underside of the gasket with coarse sandpaper; this fluffs up the underside increasing surface area to give a better bond.

We use a good contact adhesive to fix new gasket; it’s a lot less messy than sikoflex, gives just a good bond and does not leave so much material when replacing the gasket in the future. Coat both the underside of the gasket and recess with adhesive. Then carefully put new gasket into recess, attaching from the front back pushing down a small area at a time taking care to ensure the gasket is lining up correctly. Once in position run over whole gasket to ensure its firmly attached in all areas. Tape the gasket down firmly so it is held in place whilst the adhesive is curing.

Gunwhale hung trolley

Posted: 02/02/2006
Following request we have developed a new gunwhale hung launching trolley for the RS200. The trolley will support the boat under the gunwhales at the bow as well as the middle of the boat. It will be available as an option from mid February onwards..

Mast step

Posted: 21/10/2005
In approx Jan 2004 Selden changed from making their mast steps in aluminium alloy to a composite material. This had been tested on 470s and Fireballs for over a year. This material proved to not be strong enough for the RS200. After the first failure known to LDC, Selden were asked to change back to aluminium alloy for 200 mast steps. If anyone still has a composite step, contact LDC who will issue a free of charge replacement.

Spreader system

Posted: 21/10/2005
Selden updated their spreader system, across their whole dinghy mast range, early in 2004. The old barrel system was very susceptible to corrosion and jambing unless frequently used / maintained. The new pin and hole system has slightly coarser adjustment, but its simplicity gives strength and trouble free use. Inevitably, some people prefer the old system, but the improvements counterbalance the drawback. In addition, it has always been our aim to use standard manufactured parts where possible to speed up the supply chain and so that spares can be more readily obtained by sailors all over the world should they need to.

Creased jibs

Posted: 21/10/2005
A number of jibs were creased by being crushed during delivery this year. They are now being being supplied wrapped around card tubes and will eventually be supplied inside larger tubes. On the topic of availability of sails - the supply problem of sail logos earlier this season should be a thing of the past as we aim to hold them in stock now.

Rudder stock lower gudgeon

Posted: 21/10/2005
The lower gudgeons were fitted for a while using bolts that fitted flush inside and out on the stock. They looked much better, but proved prone to working loose. The gudgeons are now fitted using bolts that have the nut on the outside of the stock - ugly but effective and easy to tighten up. The flush fit bolts can be replaced, but are not always easy to remove.

Mast heel plug

Posted: 21/10/2005
In 2003 Selden updated the heel plug for their Cumulus mast section, as used on the RS200 and RS400. The original alloy fitting had been less than perfect in that it could be fitted out of alignment in error. The new heel plug is made from a composite material and can only be fitted with the tenon aligned with the mast section. Some of the new heel plugs cracked around the flange that the mast sits on. This flange was quickly thickened and the pin slot moved to the forward part of the tenon. No new spec heel plugs have failed as far as we are aware. Most of the first batch of composite tenons have been replaced. It does appear, however, that Selden inadvertantly fitted one of the first draft composite heel plugs to a mast produced in 2005. They are confident that all of these plugs have now been thrown out so this error should not happen again.

RS200 Self Bailer Moulding

Posted: 25/01/2005
The RS200/400 self bailer moulding has always been a slightly awkward fit on the RS200 hull. Keen sailors have often done a bit of fairing work on their bailers. There has also been a potential leak point due to the screws. LDC has confirmed that they have now produced a new bailer moulding, specifically for the 200, which fits more neatly and can therefore be glued in place - no screws. There is very little difference from the original, other than the way it sits around the hull skeg, immediately behind the bailer "scoop". This area is in the water flow shadow of the scoop, so it is not imagined that one would be able to detect any difference in drag (and therefore boatspeed) from a well faired old style bailer. The RS Association reps have confirmed that they are happy with this slight change, and LDC will start fitting new bailer mouldings from the end of January 2005.

RS200 Tweaker Line Changes - Outcome of Vote

Posted: 17/06/2004
Further to the recent vote to amend the RS200 class rules to permit - 1. The installation of a sheave box in place of the plastic grommet where the tweaker line exits the mast; 2. The removal of the tweaker line from the mast; 3. The spinnaker halyard to enter the mast through the lower (tweaker line sheave box; and 4. To remove the inferred requirement for the RS200 to remain able to deploy the "Square Running System" (SRS) at any time while racing. we now have a very definite decision. 85 (27%) of RS200 members voted, with 80 (94%) of these voting for the proposal. The rules have been amended accordingly and are on the website. If you would like to receive a copy of the new rules or further information about the change, please contact the RS Office.
